Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS / ISO 9001 2008 |
Model Number: | PP3927 |
Minimum Order Quantity: | 20PCS |
Price: | negotiated |
Packaging Details: | Poly Bags |
Delivery Time: | 1-4 weeks |
Payment Terms: | T/T, L/C, D/P, D/A, Western Union, MoneyGram |
Supply Ability: | 30000 pcs/ month |
Filter Cloth: | Monofilament Filter Cloth For Liquid Filtration | Micron Rating: | 30 Micron -100 Micron |
---|---|---|---|
Weaving Of Filter Cloth: | Plain / Twill | Application: | Coal Washing , Coal Washery, Slurry Dewatering |
Filter Type: | Press Filter Cloth , Disc Filter , Leaf Filter | Filament Of Filter Cloth: | Multiple Filament / Monofilament |
Sample: | Free Sample | ||
High Light: | 100μM Filter Press Cloth,50μM Filter Press Cloth,Solid Liquid Separation Filter Cloth |

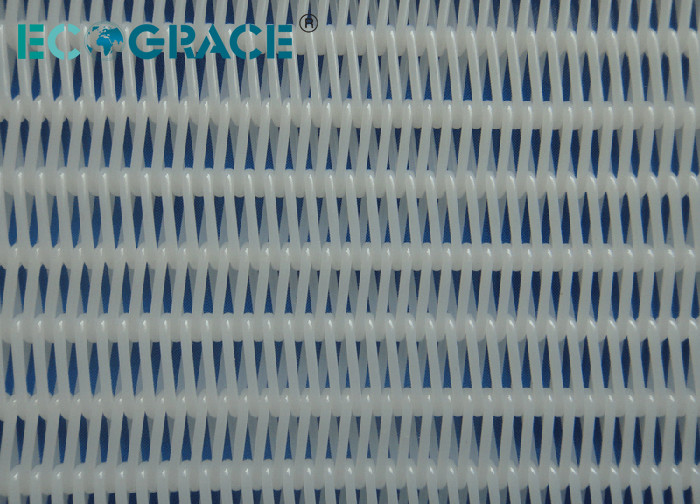

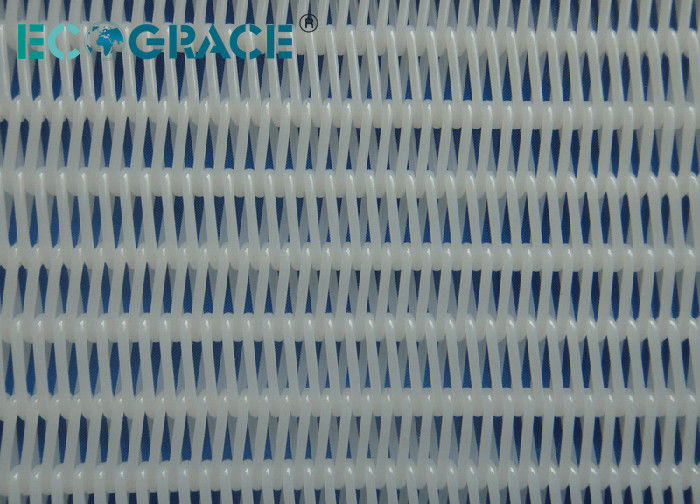

Solid Liquid Separation 50μM 100μM Filter Press Cloth
Waste water treatment Slurry Dewatering Filter Press Cloth For Filter Press
Solid Liquid Separation Filter Press Cloth Belt Press Cloth
Filter Press Cloth , Belt Filter Cloth ,
a. Filter Cloth : Polyester Filter Cloth , Polypropylene Filter Cloth , PA Filter Cloth , Nylon Filter Fabric
b. Working temperature: normal working temperature 88 degree C , 110 Degree C peak working temperature.
c. Weight standard: 250g / sqm - 900 g / sqm . Make to order is also accepted.
Filter press fabric / filter press cloth / filter press plate cloth
Vertical DISC Filter Machine Filter Cloth ,
Leaf Filter machine filter cloth
Woven filter press cloth for sludge dewatering , recessed filter press , membrane filter press
Model No. And Specifications:
Model | material |
Weight (g/m2) |
Thickness (mm) |
Air permeability (l/m2.s) |
Breaking strength (N/5x20CM) |
Elongation (%) |
Density (pcs/10cm) |
weave | ||||
warp | weft | warp | weft | Peak. | Cont. | |||||||
PP 750A | PP | 450 | 0.79 | 26 | 3104 | 2663 | 38 | 30 | 222 | 154 | PLAIN | |
PP 750B | PP | 517 | 1.27 | 30 | 2608 | 2050 | 35 | 28 | 256 | 151 | TWILL | |
PP 750BB | PP | 740 | 1.40 | 8 | 10115 | 3030 | 35 | 30 | 582 | 110 | SATIN | |
PP 750AB | PP | 650 | 1.30 | 20 | 7800 | 5200 | 26 | 20 | 450 | 170 | TWILL | |
PP 4212 | PP | 380 | 1.07 | 123 | 2972 | 1942 | 24 | 37 | 236 | 123 | TWILL | |
PE 8222 | PE | 700 | 1.5 | 8 | 720 | 450 | TWILL |
Type of Filter Cloth Bag :Filter press plate , centrifuge Filter , Leaf filter , fluid bed dryer, Rotary / Horizontal DISC filter .
Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates , iron oxide , nickle, salt , aluminum oxide , titanium dioxide, additives , glycerol , pesticides , white carbon black , zinc , calcium carbonate , etc.
Mining Industry :
Red mud , tailing gold , potash fertilizer , vanadium ore , the end of coal, clean coal, coal washing , clay , Kaolin clay, etc.
Metallurgical Industry :
Alumina / Aluminum oxide Plant Filtration , Gold, molybdenum, leads , vanadium , nickel , zinc , copper, tungsten , carbide slag , etc.
Food processing :
Fruit juice, sugar, starch , sweetener, beer , etc.
Environmental protection: Sewage treatment, sludge dewatering , flue gas desulphurization, salt mud , fly ash, etc.
APPLICATION AND FILTER CLOTH CHOOSING :
P0802Y | zinc oxide |
T0803t | Potash fertilizer |
P120D/P050D/P080D/P020MD | Double layer monofilament filter cloth |
P050D, P030MD, P020MD | FGD, Gypsum |
N9029 | Iron ore concentrate , ALUMINA , ALUMINUM OXIDE |
N199 | Iron ore concentrate |
P1010 | Iron ore concentrae |
P020MD | Iron ore concentrate |
9501-32 | Fly ash, coal ash |
9501-35 | Fly ash |
9501-34 | Zinc oxide |
P1010sdy | Zinc sulfate |
PT9502b-41DY | Gold mining , vanadium mine |
9502-40 | Borax, vanadium pentoxide |
PT9502b-31 | Gold |
P750AB | Copper |
P120/P190 | Phosphate |
MP11343Y | Copper |
9502-402DY | Iron sulfide |
9503-32 | Catalyst |
P190 | Beer filtration |
P199s/P11636: | Sugar filtration |
N120B | Palm oil filtration, other oil, use anti-static filter cloth |
P1010-37DY | Titanium Dioxide |
3233SY | White carbon black |
3233SY/108C/P801IIy | Kaolin |
T3112BY/3233SYY | Pigment, dyestuff |
Benefits
High dimensional stability,
Good abrasion performance,
Wide range of filter rate
Efficient fabric cleaning
Smooth Surface
Easy Cake Releasing .
