Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS / ISO 9001 |
Model Number: | NOMEX 550 |
Minimum Order Quantity: | 100ps |
Price: | negotiated |
Packaging Details: | Poly bag or Paper cartons |
Delivery Time: | 25 days |
Payment Terms: | T/T ,L/C |
Supply Ability: | 20000pcs/month |
Dust Filter Bag: | Meta Aramid , Nomex Filter | Weight: | 500gsm , 550 Gsm , 17 Oz , |
---|---|---|---|
Size: | 152 X 4500mm | Working Temperature: | 190 Degree , Max 240 Degree C |
Application: | Asphalt Mixing , Metal Melting , Steel Sintering | ||
High Light: | Aramid Needle Felt bags,Aramid Nomex Filter Bag,500gsm Nomex Filter Bag |

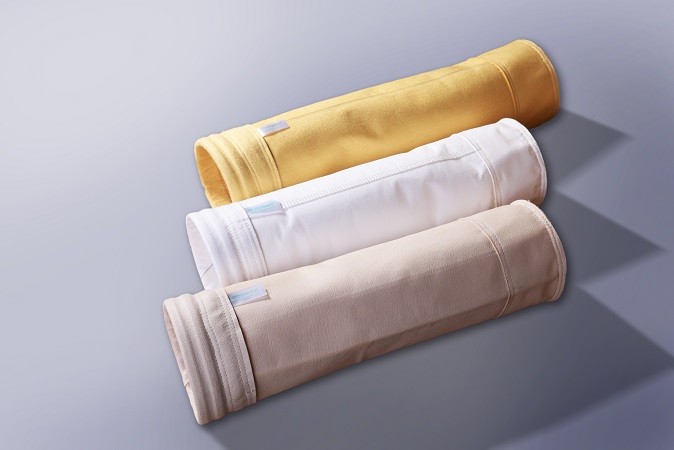

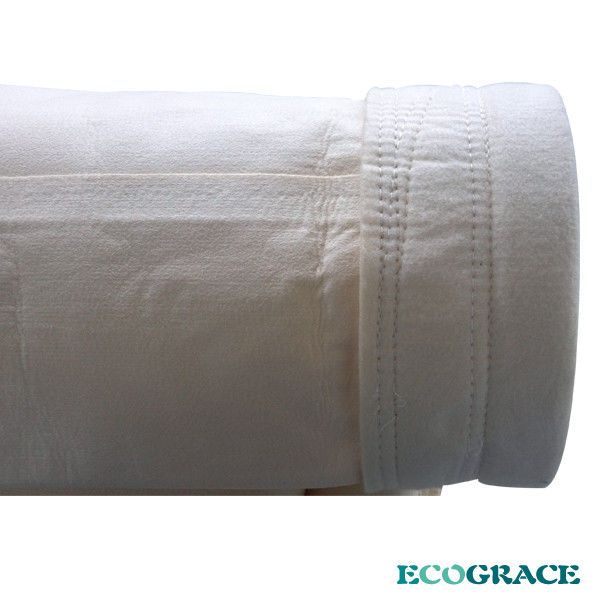

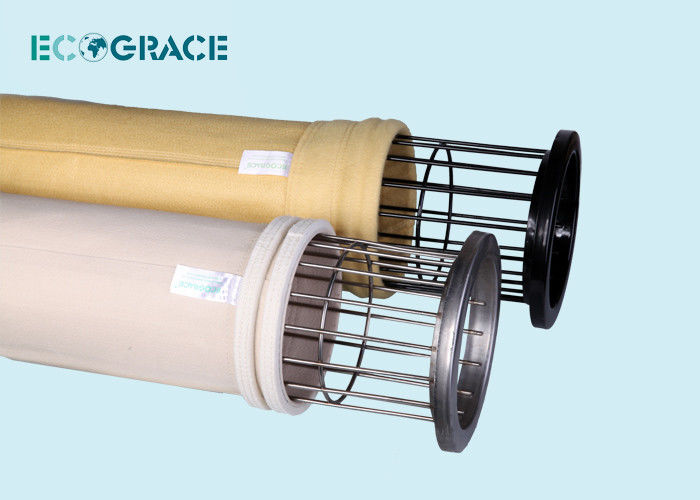

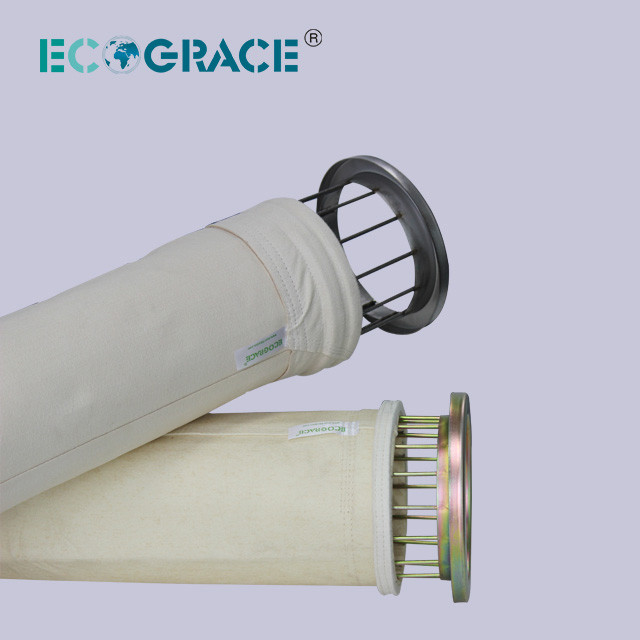

Dust Collector Filter Bag , Filter Sleeves , Filter Hose
Meta Aramid filter media is a high temperature resistant filter media, the Meta aramid filter media is suitable
up to 200 C in dry conditions.
Application: Asphalt mixing, Quarrying, Lime, Gypsum, Cement, Foundries, smelting, Chemical:
Features :
Nomex filter bags features excellent anti-anrasion, good and good anti-alkali , and anti-high temperature
Advantages :
1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .
Specifications :
Article Name |
Nomex needled felt |
|
Ingredients |
Fiber |
100% Nomex |
Scrim |
100% Nomex |
|
Weight |
g/m2 |
500 |
Thickness |
mm |
2.1 |
Density |
g/m³ |
0.24 |
Permeability |
L/dm2.min |
150 |
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
Weft |
≥1000 |
|
Elongation @200N/5cm |
Warp |
<5 |
Weft |
<5 |
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
% |
≤1 |
|
Service Temperature(°C) |
Continuous |
200 |
Instant |
240 |
|
Finishing |
Singeing, calendaring |
