Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS |
Model Number: | 160mmX6000mm |
Minimum Order Quantity: | 300PCS |
Price: | USD12- USD50 / pcs |
Packaging Details: | Poly bag or Paper cartons |
Delivery Time: | 5-15 working days |
Supply Ability: | 20000 pcs Nomex filter bag per week |
Filter: | Industrial Filter Bag | Material: | Nomex Felt |
---|---|---|---|
Application: | Dust Filtration In Dust Collector | Industry: | Metallurgy Industry |
Size: | 130 X 6000mm | Certification: | SGS / ISO 9001 |
High Light: | Metallurgy 6000mm Filter Bag,6000mm Industrial Filter Bag,Nomex Felt Industrial Filter Bag |

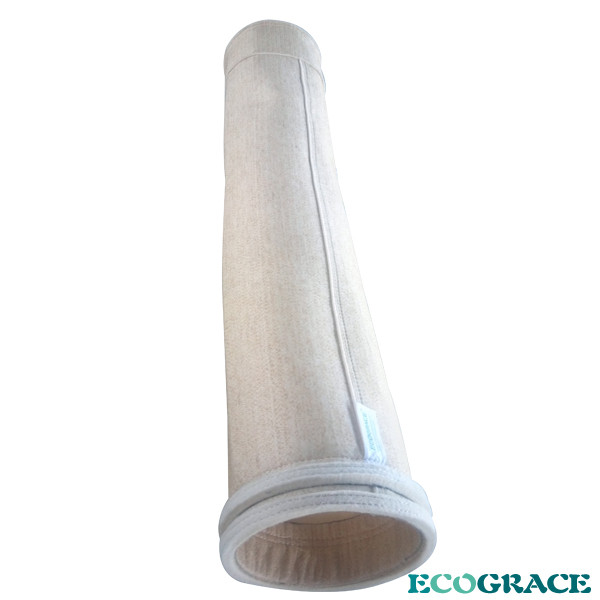

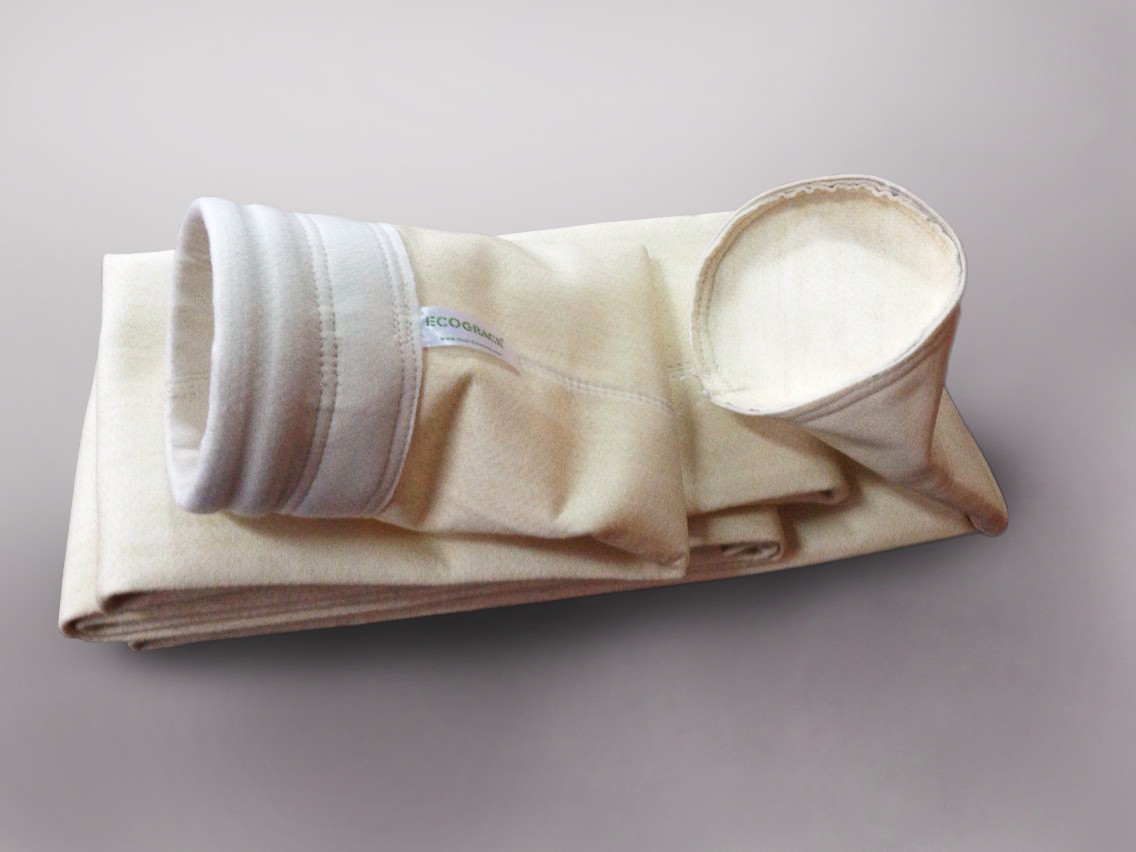

Fabric filter Nomex filter bag for high temperature smoke filtration
Description:
Nomex filter bag is widely applied in Cement kiln filter ,Asphalt mixing plant for high temperature smoke filtration .
Nomex filter bag ,high temperature resistant
Nomex filter bag ,water repellent treatment .
Nomex filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .
Cement Kiln Bag Filter for dust filtration filter bag Nomex size 160X3050
Applications:
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
NOMEX filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
Specifications:
Article Name |
Nomex needled felt |
|
Ingredients |
Fiber |
100% Nomex |
Scrim |
100% Nomex |
|
Weight |
g/m2 |
500 |
Thickness |
mm |
2.1 |
Density |
g/m³ |
0.24 |
Permeability |
L/dm2.min |
150 |
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
Weft |
≥1000 |
|
Elongation @200N/5cm |
Warp |
<5 |
Weft |
<5 |
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
% |
≤1 |
|
Service Temperature(°C) |
Continuous |
200 |
Instant |
240 |
|
Finishing |
Singeing, calendaring |
Properties
1) Performs at high temperatures
Nomex filter bag can be used continuously at operating temperatures up to 218°C (425°F) , and can handle higher temperature surges. However, to optimize dust filter bag wearing life, continuous temperatures of 204°C (400°F) and lower with minimum temperature surges are recommended.
2) Resists flexing and abrasion
Flex resistance of Nomex filter bag at room temperature is good, about equal to that of polyester fibers; after aging at temperatures of 121°C (250°F) and above its toughness if excellent. Nomex filter bag should give more than three times the wear life of polyester filter bags at 121°C (250°F) and above.
3) Effect of moisture
Nomex filter bag performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20. When operating in high moisture environments it would be worthwhile to investigate reduction of temperature to reduce wear life.
4) Resists Chemicals
Nomex filter bag ,Aramid filter bag fier resists attacks by mild acids, mild alkalis, and most hydrocarbons. In acid environments, evaluation of Nomex filter bags should be made to ensure that the fiber will perform acceptably before insulation. Nomex filter bag ,Aramid filter bag is acid environment, at temperatures above the dew point, will outperform polyester. Temperature above the dew point should be maintained to minimize chemical attack on Nomex filter bag and the dust collector equipment.
5) High temperatures
The most effective use of Nomex filter bag ,aramid filter bag is in high efficiency filtering systems where effluent temperatures are above 250°F or in systems with surges over 250°F. In hot gas filtration systems.
Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.
The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.
Competitive Advantage:
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
