ZHEJIANG GRACE ENVIROTECH CO.,LTD
Always Dedicating In Filtration
| Place of Origin: | China |
|---|---|
| Brand Name: | ECOGRACE |
| Certification: | ISO9001 : 2008 , SGS |
| Model Number: | D300mm X L10000 mm |
| Minimum Order Quantity: | 200ps |
| Price: | negotiated |
| Packaging Details: | In woven bags |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 50000 pieces per month |
| Filter Bag Media: | Fiberglass Filter Bag | Type: | Pulse Jet Filter Bag , Reverse Air Filter Bag |
|---|---|---|---|
| Working Temperature: | 150 -260 Degree C | Size: | 160 X 6000 , 152 X 5000 , 292 X 11000 ,etc. |
| Application: | Carbon Black Plant , Iron Alloy Plant , Silicon Furnace | Other Application: | Cement Plant , Cement Kiln |
| High Light: | Ferro Alloy Plant Fiberglass Filter Bag,10000mm Fiberglass Filter Bag,300mm Pulse Jet filter bag |
||

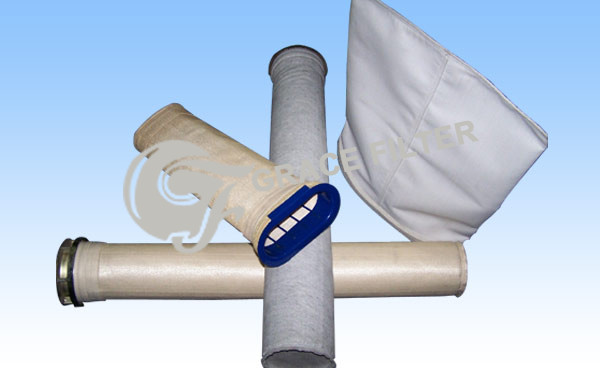

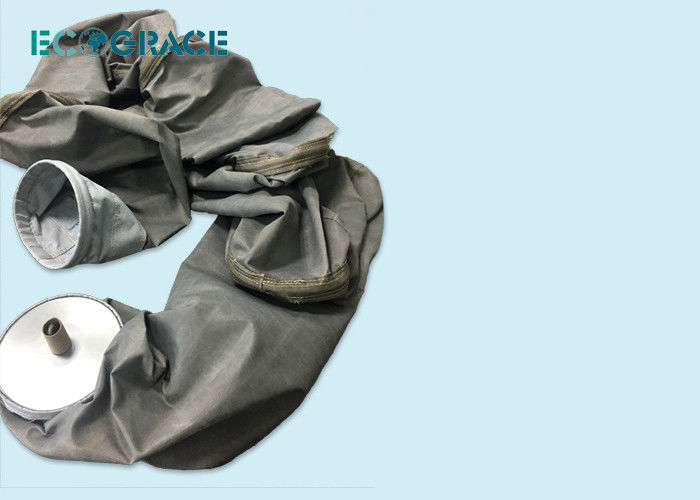

Ferro alloy Plant Fiberglass Filter Bag
Carbon Black Plant Fiberglass Filter Bags Dust Filter / Air Filter Media
PTFE Fiberglass Filter Bags For Dust Collector for Carbon Black Plant , Cement Plant , Metal smelting furnce filter , etc.
Regular Size : 290 mm x 100000mm , 160 x 6000mm , 130 x 2450mm
Applicaiton : Iron Alloy plant , silicon furnace , carbon black , cement plant , coal boiler , paper making plant , etc.
ECOGRACE Woven Fiberglass Fabric Filter Bag :
ECOGRACE fiberglass filter cloth Filter Bags are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .
The applied industry including cement plant , carbon black processing , Silicon furnace , Ferrous Silicon Manganese smelting furnace , Coal Boilers , steel mill .
Features:
1. High temperature resistant , it can work for a long time under 260-280 °C.
2. Smooth surface is good for easy dust cake releasing , energy saving .
3. Steady size,non shrinking under proper temperature.
4. Intensity high, obstruction more than 99% code thickness.
Industrials Applications:
• Cement Plant
• Coal Boiler
• Wast incinerators
• Carbon black production
• Refineries
• Steel Mills
Foundary / metal smelting furnace
Metal Smelting
Non ferros alloy plant
Paper plant ,
Glass production plant .
E-Glass Fiber Finished filter cloth specification:
| Item No. | LOI (%) | Weave | Weight (g/m2) | Mullen burst (kpa) | Tensile strength (N/2.5cm) | Air permeability(cm3/cm2/s·127pa) | Finished | Running temperature (°C) | |
| warp | weft | ||||||||
| EFA301 | > 10 | double twill | 780-850 | > 6200 | > 2400 | > 2000 | 15-30 | PTFE | <260 |
| EFI301 | > 10 | double twill | 780-850 | > 6200 | > 2400 | > 2000 | 15-30 | PI | <260 |
| EFB302 | > 2 | 1/3 twill | 450-500 | > 4500 | > 2000 | > 1200 | 20-36 | GSP | <260 |
| EFC302 | > 5 | 1/3 twill | 340-380 | > 4500 | > 2000 | > 1200 | 20-36 | AR | <260 |
| EFA303 | >10 | 1/3 twill | 320-360 | > 3500 | > 1400 | > 800 | 22-35 | PTFE | <260 |
| EFC303 | > 5 | 1/3 twill | 900-950 | > 3400 | > 1200 | > 700 | 22-35 | AR | <260 |
| EFD502 | > 7 | satin | 900-950 | > 8000 | > 3000 | > 2400 | 15-25 | PD | <400 |
| EFA404 | > 10 | double twill | 800-850 | > 5000 | > 2600 | > 2200 | 15-30 | PTFE | <260 |
| EFE201 | >1.7 | satin | 550-600 | > 5500 | > 2200 | > 2000 | 20-35 | PG | <260 |
| EFE203 | > 1.7 | 1/3 twill | 550-600 | > 5500 | > 2200 | > 2000 | 20-35 | PG | <260 |
ECOGRACE Fiberglass Filter Bag Chemical Finishing :
GSP finished:It consists blend of silicon oils, graphite & PTFE ( Teflon ). The three finishes components combine to protect the glass fabric from abrasion , but offer only limited protection from chemical attack. The
GSP finish is now widely primarily in cement production and metal foundry applications .
PTFE finished:10 % add-on of PTFE particles encapsulates the glass fibers to prevent abrasion.Recommended for use with utility base load boilers operating under mild pH conditions.
Acid Resistent treatment ( AR ) :Consists of acid resistant polymers,PTFE , graphite , and silicon treatment . Recommended for filtration of flue gases in industrial utility boilers and acid environments such as carbon black and fossil fuel burning power generation .
e-PTFE membranes: Coated with e-PTFE membranes
With the surface finished, it enjoys such characters as smooth, much lower emission , high temperature resistant , chemical corrosion repellent , high tensile breaking strength ,easy cleaning .
