Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS, ISO |
Model Number: | D160 xL4500 |
Minimum Order Quantity: | 300PCS |
Price: | 10~30USD/PCS |
Packaging Details: | Poly bag or Paper cartons |
Delivery Time: | 15-25 days |
Payment Terms: | T/T ,L/C |
Supply Ability: | 50000pcs/month |
Material: | Nomex Filter Bag | Application: | Asphalt Mixing Plant Filter |
---|---|---|---|
Temperature: | Dust Collector Bag Filter | Bag Filter: | Nomex Needle Felt |
High Light: | Needle Felt Nomex Filter Bags,4500mm Nomex Filter Bags,ECOGRACE nomex bag |

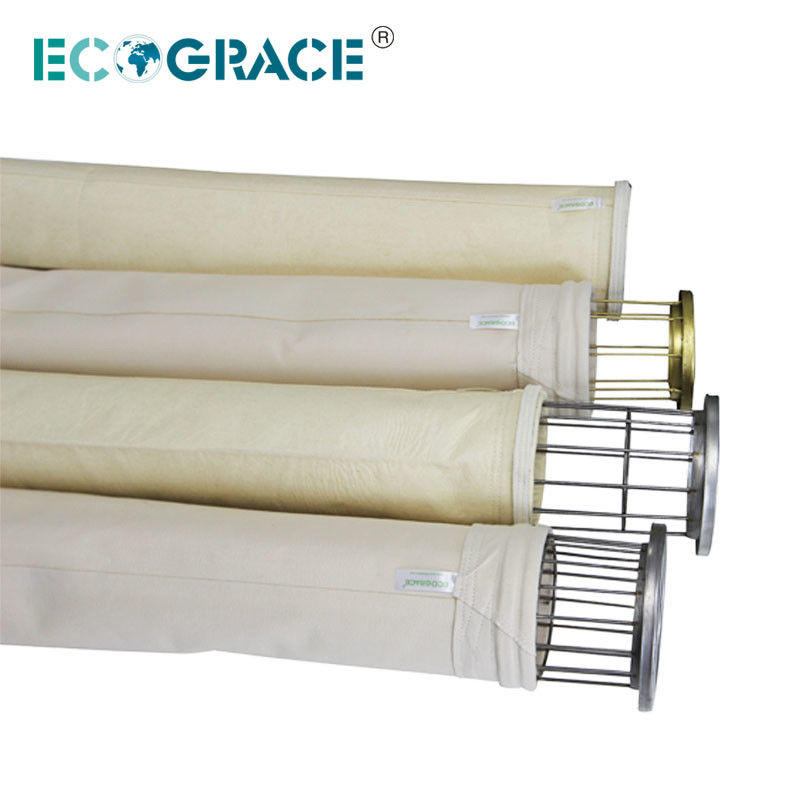

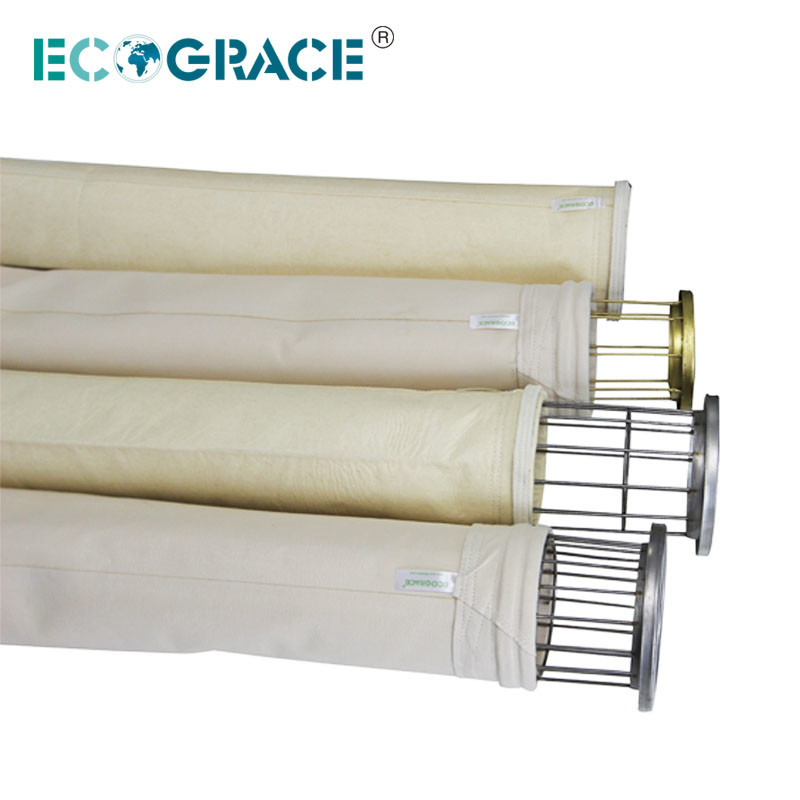

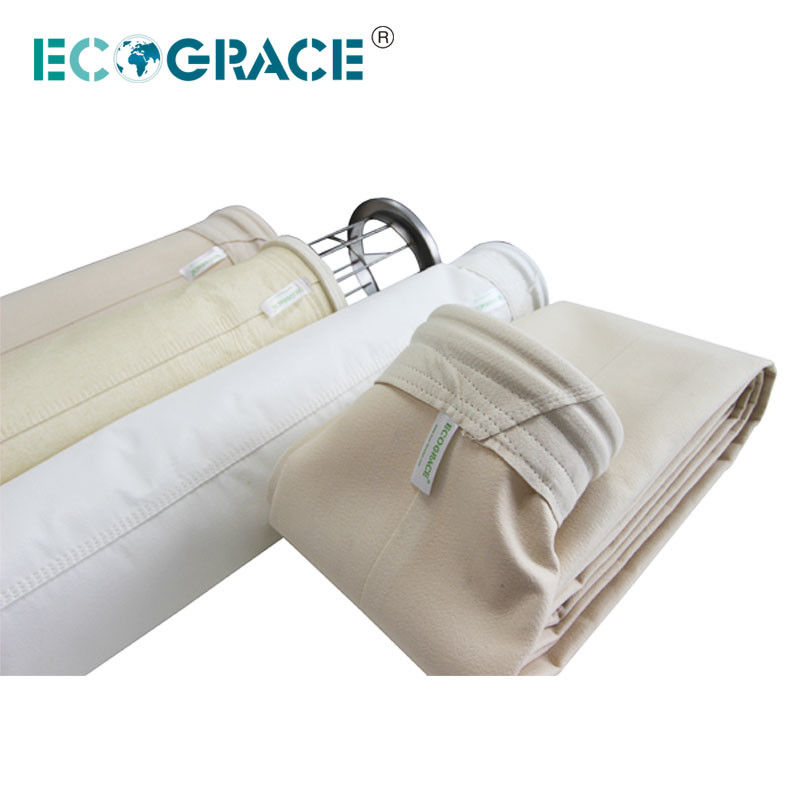

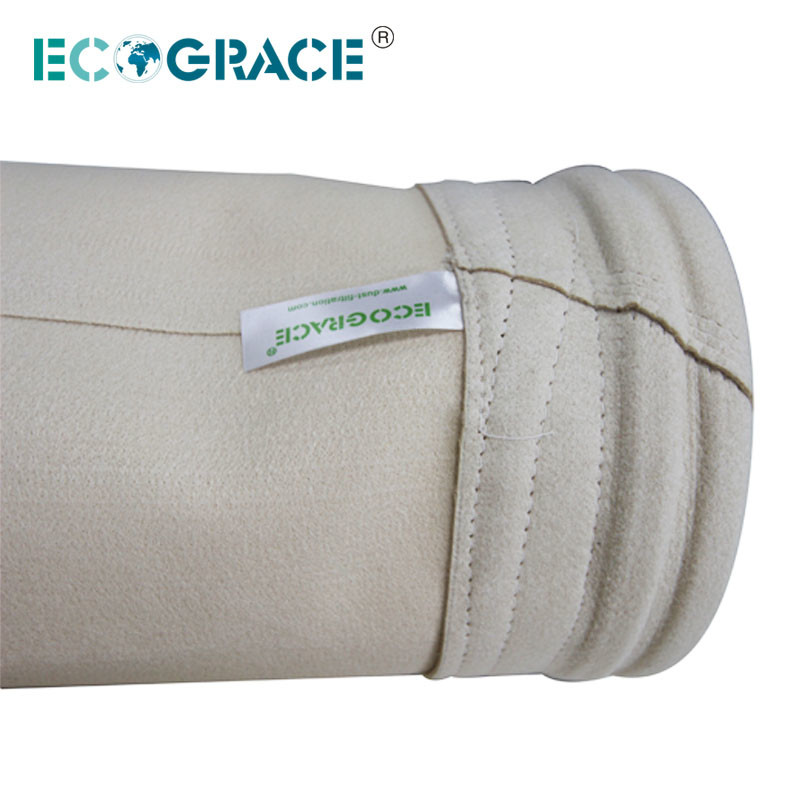

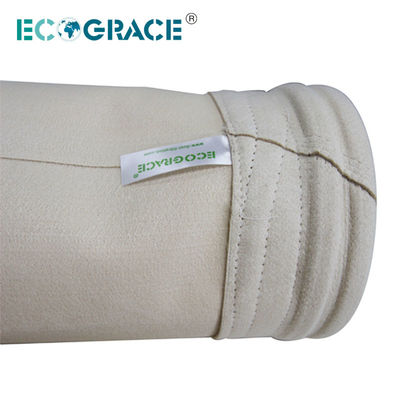

Asphalt Mixing Plant Nomex Filter Bags Dust Collector Bag Filters
Quick Details:
Nomex filter bags is the best choice for Asphalt mixing plant bag filter dust filtration.
Advantages:
1) Performs at high temperatures
Nomex Filter Bags can be used continuously at operating temperatures up to 218°C (425°F) .
2) Good abrasion Resistant
Flex resistance of Nomex filter bag at room temperature is good, about equal to that of polyester fibers; after aging at temperatures of 121°C (250°F) and above its toughness if excellent. Nomex filter bag should give more than three times the wear life of polyester filter bags at 121°C (250°F) and above.
3) Good chemical Resistant
Nomex filter bag work well in acid environment, The dust collector system should be warmed before putting on stream and dried before being shut down to minimize chemical attack.
5) Dimensional Stability is well for Nomex filter bag
6) High temperatures
The most effective use of Nomex filter bag ,aramid filter bag is in high temperature filtration systems where effluent temperature are above 190 C degree or in systems with surges over190 C degree. In hot gas filtration systems, Nomex filter bag require less filter area, for equal gas volume and efficiencies, than fiber glass.
Applications:
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
NOMEX filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
Specifications:
Article Name |
Nomex needled felt |
|
Ingredients |
Fiber |
100% Nomex |
Scrim |
100% Nomex |
|
Weight |
g/m2 |
500 |
Thickness |
mm |
2.1 |
Density |
g/m³ |
0.24 |
Permeability |
L/dm2.min |
150 |
Tensile breaking |
Warp |
≥800 |
Weft |
≥1000 |
|
Elongation @200N/5cm |
Warp |
<5 |
Weft |
<5 |
|
Maximum shrink |
Temperature(°C) |
250 |
% |
≤1 |
|
Service Temperature(°C) |
Continuous |
200 |
Instant |
240 |
|
Finishing |
Singeing, calendaring |
