Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS ISO 9001 : 2008 |
Model Number: | Nomex Filter Bag |
Minimum Order Quantity: | 100ps |
Price: | negotiated |
Packaging Details: | Poly bag or Paper cartons |
Delivery Time: | 25 days |
Payment Terms: | T/T ,L/C, Western Union, MoneyGram |
Supply Ability: | 20000pcs/month |
Filter Bag Name: | Nomex Filter Bag Meta Aramid Filter Bag | Filter Media: | Nomex Filter Fabrics |
---|---|---|---|
Size Of Filter Bag: | D 150mmX L3660mm | Application: | Asphalt Mixing Plant |
Good Point: | Cheaper In High Temperature Standby Filter | Other Application: | Metal Melting Furnace Fume Filtration , |
Other Size: | D 160 X L 3000 Mm , D 152 X L 4500mm , Make To Order | ||
High Light: | Aramid Needle Felt bags,Aramid Nomex Filter Bag,500gsm Nomex Filter Bag |

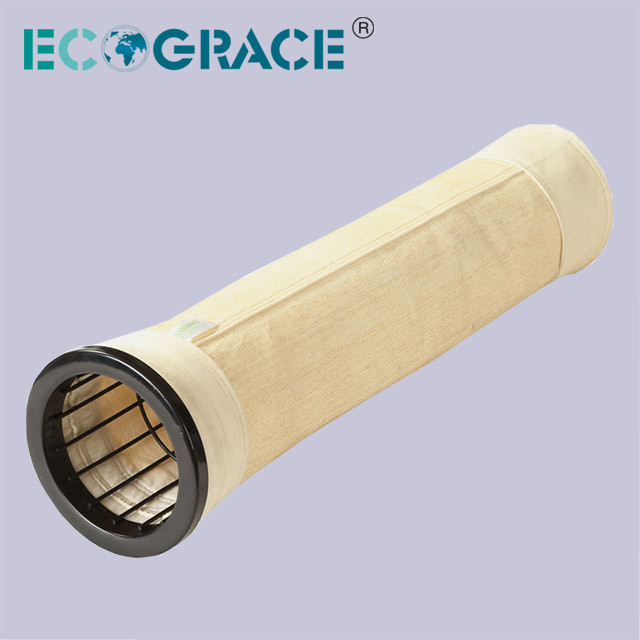

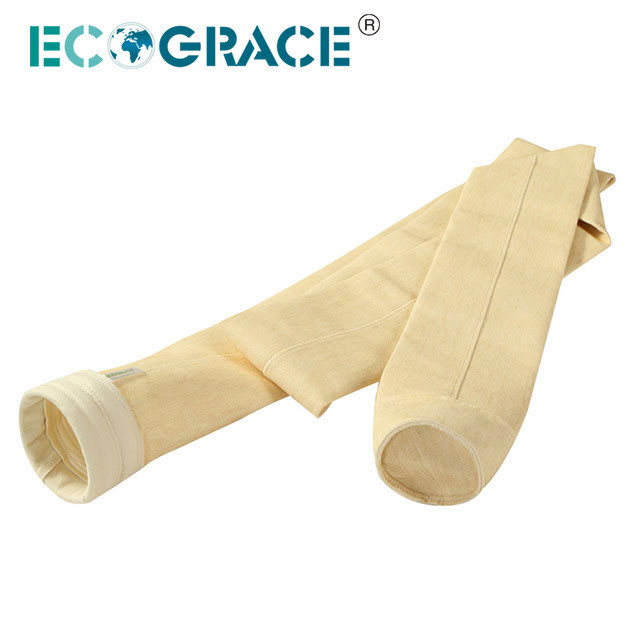

Asphalt Mixing Plant Nomex Filter Bags Filter / Cages Dust Collector Filter bag , Asphatech Filter Media specially for asphalt mixing plant bag filter .
Nomex filter bag is the high temperature filter bag and also it is most popular dust collector filter bag for the Ashphalt mixing plant and steel plant sintering process . It will working in fumes temperature asphalt batching fumes 190 degree to 200 degree C , instant 240 degreen C . It is one of the most cost effective high temperature resistant dust collector filter bag , which is cheaper and effective , with long working life up to 24 months.
Nomex Filter Fabrics Bag Filters also be applied in the high temperature working condition in steel plant, metallurgy industry metal smelting furance air filtration systems.
Quick details:
1. Meta Aramid filter media is a high temperature resistant filter media.
The instant working temperature is 240 C degree, the operation working temperature <190 C degree.
2. Application: Asphalt mixing, Quarrying, Lime, Gypsum, Cement, Foundries, smelting, Chemical.
3. Good and strong tensile strength and good abrasion resistant function make it with the longer
working life.

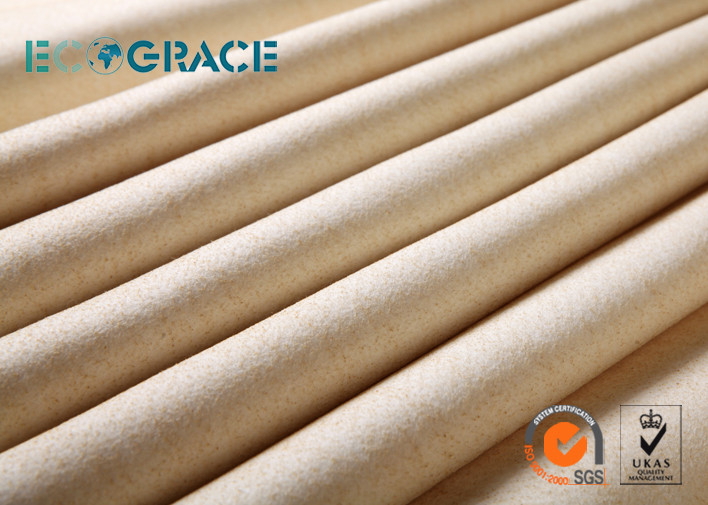

Specifications :
Article Name |
Nomex Filtration Felt |
|
Ingredients |
Fiber |
100% Nomex |
Scrim |
100% Nomex |
|
Weight |
g/m2 |
550 |
Thickness |
mm |
2.1 |
Density |
g/m³ |
0.24 |
Permeability |
L/dm2.min |
150 |
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
Weft |
≥1000 |
|
Elongation @200N/5cm |
Warp |
<5 |
Weft |
<5 |
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
% |
≤1 |
|
Service Temperature(°C) |
Continuous |
200 |
Instant |
240 |
|
Finishing |
Singeing, calendaring |

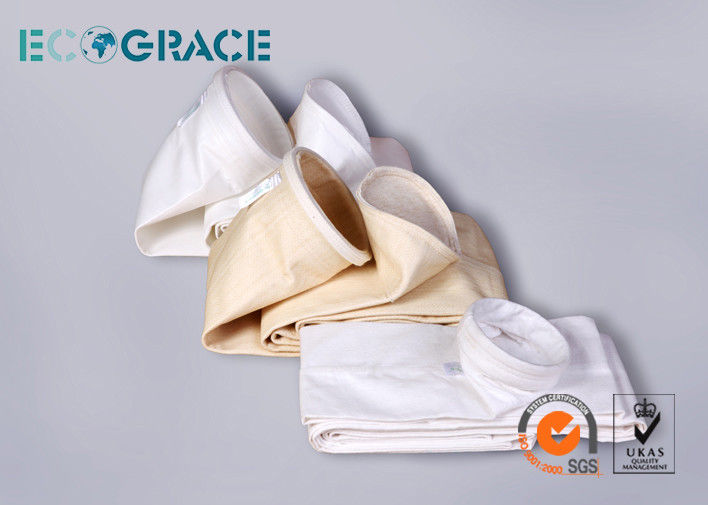

MainType of Nomex Filter Bags :
Pulse Jet Dust Filter Bag
Envelope Type Filter Bag
Snap Band top filter bag
