Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | SGS ISO 9001 : 2008 |
Model Number: | 150mm X 3000mm |
Minimum Order Quantity: | 100ps |
Price: | negotiated |
Packaging Details: | Poly bag or Paper cartons |
Delivery Time: | 25 days |
Payment Terms: | T/T ,L/C, Western Union, MoneyGram |
Supply Ability: | 20000pcs/month |
Filter Bag Name: | Nomex Filter Bag Meta Aramid Filter Bag | Filter Media: | Nomex Filter Felt |
---|---|---|---|
Size Of Filter Bag: | Diameter 150mmX Length3000 Mm | Application: | Asphalt Mixing |
Good Point: | Cheaper In High Temperature Standby Filter | Other Application: | Metal Melting Furnace Fume Filtration , |
Other Size: | D 160 X L 3000 Mm , D 152 X L 4500mm , Make To Order | ||
High Light: | Aramid Needle Felt bags,Aramid Nomex Filter Bag,500gsm Nomex Filter Bag |

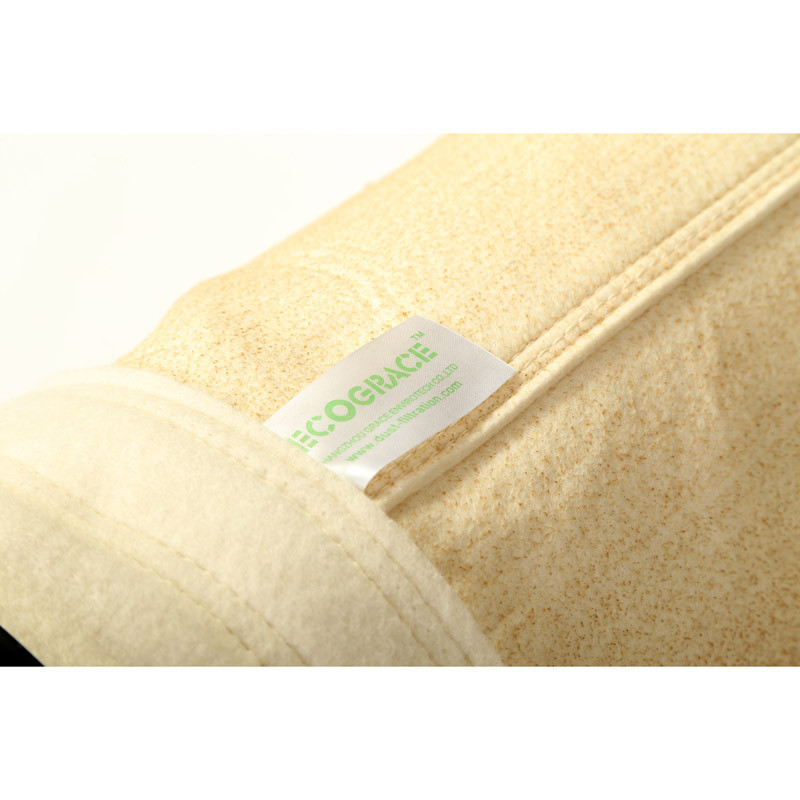

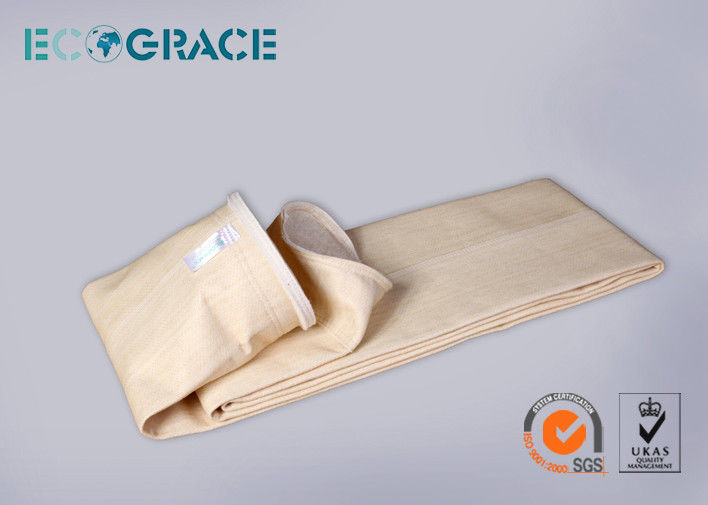

Asphalt Batching Plant Nomex Filter Bag for dust collector , 150mm X 3000mm
Nomex filter bag is the most popular dust collector filter bag for the Ashphalt batching plant and steel plant sintering process . It will working in fumes temperature asphalt batching fumes 190 degree to 200 degree C , instant 240 degreen C . It is one of the most cost effective high temperature resistant dust collector filter bag , which is cheaper and effective , with long working life up to 24 months .
Quick details:
1. Meta Aramid filter media is a high temperature resistant filter media.
The instant working temperature is 240 C degree, the operation working temperature <190 C degree.
2. Application: Asphalt mixing, Quarrying, Lime, Gypsum, Cement, Foundries, smelting, Chemical.
3. Good and strong tensile strength and good abrasion resistant function make it with the longer
working life.
Application :
Cement Industry Dust Filtration system ,
Asphalt mixing gas filtration
Metal smelting industry filter system
Gypsum Industry,
High temperature industrial gas / dust filtration.
Specifications :
Article Name |
Nomex Filtration Felt |
|
Ingredients |
Fiber |
100% Nomex |
Scrim |
100% Nomex |
|
Weight |
g/m2 |
550 |
Thickness |
mm |
2.1 |
Density |
g/m³ |
0.24 |
Permeability |
L/dm2.min |
150 |
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
Weft |
≥1000 |
|
Elongation @200N/5cm |
Warp |
<5 |
Weft |
<5 |
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
% |
≤1 |
|
Service Temperature(°C) |
Continuous |
200 |
Instant |
240 |
|
Finishing |
Singeing, calendaring |
MainType of Nomex Filter Bags :
Pulse Jet Dust Filter Bag
Envelope Type Filter Bag
Snap Band top filter bag
