ZHEJIANG GRACE ENVIROTECH CO.,LTD
Always Dedicating In Filtration
| Place of Origin: | China |
|---|---|
| Brand Name: | ECOGRACE |
| Certification: | SGS ISO 9001 |
| Model Number: | PPS500 |
| Minimum Order Quantity: | 100ps |
| Price: | negotiated |
| Packaging Details: | Paper cartons |
| Delivery Time: | 2 weeks |
| Payment Terms: | TT LC |
| Supply Ability: | 20000PCS PER MONTH |
| Weight: | 500gsm | Thickness: | 1.9mm |
|---|---|---|---|
| Diameter: | 120-180mm | Length: | 2000-8000mm |
| Constant Working Temperature: | 160degree | Warranty: | 12 Months |
| High Light: | Ryton High Temperature Filter Bags,800cm micron filter cloth,PPS High Temperature Filter Bags |
||

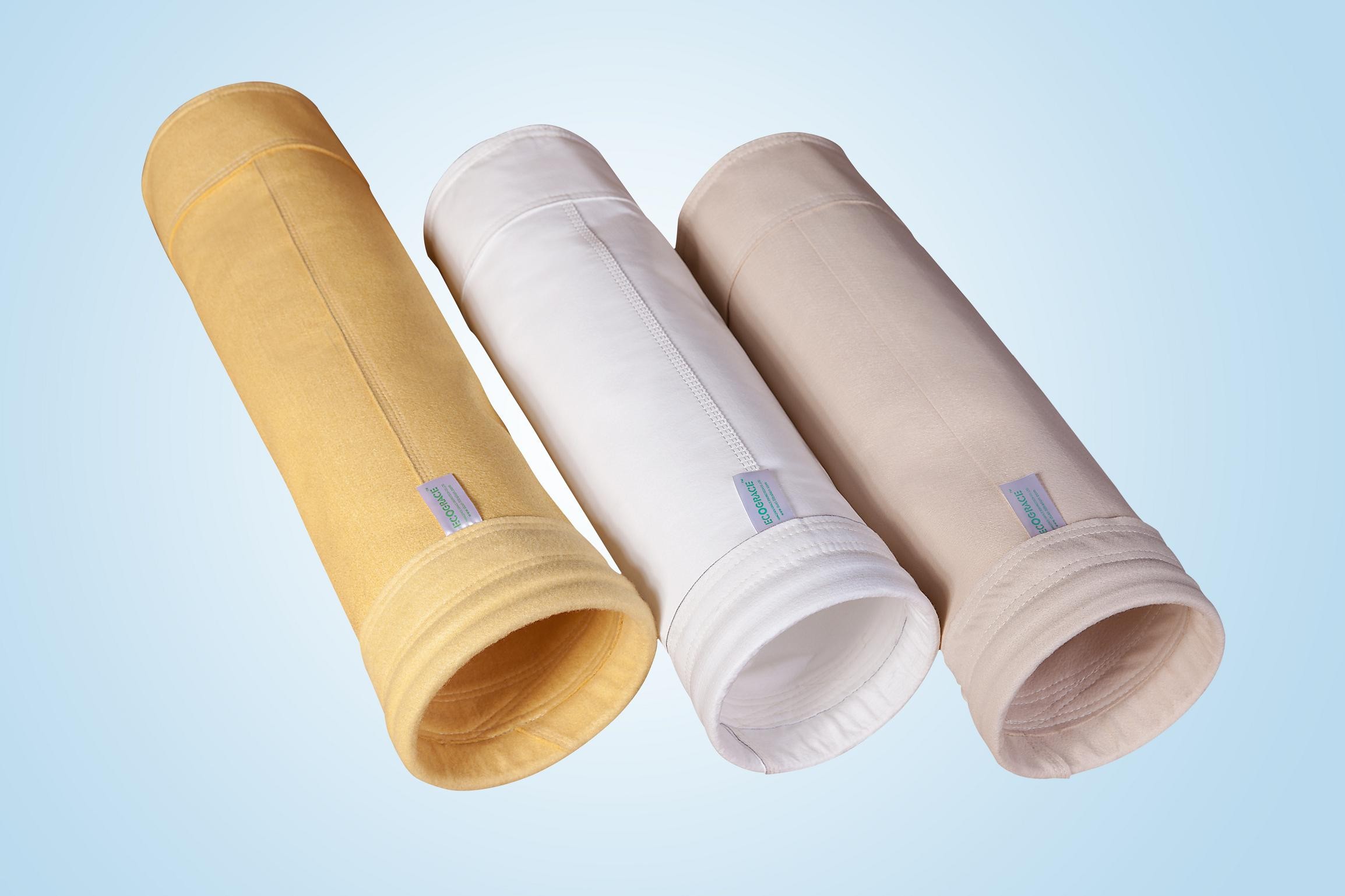

PPS Ryton Needle Felt Filter Bag Media With High Temperature Resistant
PPS Ryton Filter Bag Media With High Temperature Resistant , Dust Collector Filter Socks
Coal-fired power stations generate a significant amount of fly ash, which must be safely removed from the flue
gas by dust collectors. Therefore, the central task of filter media in coal-fired power stations is an efficient dust removal and the neutralisation of harmful gases. Grace Envirotech offers you filter media solutions which are
designed for these tasks and matched to the individual applications.
PPS (Ryton) Filter medias(Polyphenylene Sulfide)
Application:
PPS (Ryton) Filter medias are widely used in coal-fired boilers, waste incinerators, coking furnaces, kiln furnaces, chemical dry process of flue gas cleaning processes, also using, carbon black, powder collection, pneumatic conveying, cement industry, and more. When due to chemical attack and hydrolysis causes, Aramid cannot be
used, PPS (Ryton) Filter media can be substituted.
Performance:
Continuous gas continuous temperature is up to 160°C, instant heat resistant up to 200°C
Chemical structure is simple, strong and stable
Excellent performance of acid and alkali resistance!
Excellent hydrolysis resistance capability, and strong chemical stability
Good flame retardant and excellent heat resistance function
Disadvantage is that antioxidant performance of PPS (Ryton) Filter media is poor, it reacts to oxidation-corrosion.
It is suitable for gas with O2 composition < 10%
|
Cont. Temperature (°C): |
70-220°C |
|
Peak Temperature (°C): |
Orientation to the maximum peak temperature of the fibre polymers used |
|
Dust: |
Fly ash, sorption products |
|
Dust Properties: |
Fine, powdery, sometimes abrasive |
|
Dust Source: |
Dry sorption, fluidised bed firing, pulverised coal firing, scrubber, spray reactor |
|
Harmful Gases: |
H2O, NOx, SOx |
|
Cleaning Process: |
Pulse jet |
|
Fuels: |
Lignite, coal |
Tailor-made dust filter media made of PPS ,Ryton,Polyimide (PI)- and Polytetrafluoroethylene (PTFE)-fibres meet the challenges in coal-fired power stations to the highest degree. For filtration of the various fly ashes all types are also available . The much larger filter area of the our dust filter ensures that the dust is separated in a highly effective manner. Thus, under optimal operational conditions, the dust collector achieves emissions which are often far below the legally permissible limits.
In thermal power plant coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector , PPS filter bag ,Rtyon filter bag are an ideal filtration material.
Specifications:
|
Series: |
PPS550gsm |
|
Material: |
PPS (RYTON) 450 - 650g/sq.m needle felt |
|
Fibre: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
|
Scrim: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
|
Weight: |
400 - 650g/m2 (customized) |
|
Finishing: |
Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
|
Specifications: |
Customized according to drawing / sample |
|
Packaging: |
Polybag in cartons |
|
Applications: |
Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
|
Delivery Time: |
7-45 days |
|
Payment Terms: |
|
Below fiber performance index for your reference.
|
|
Operating Temperature (°C, dry) |
Abrasion Resistance |
Hydrolysis Resistance |
Alkali Resistance |
Organic Acid Resistance |
Mineral Acid Resistance |
Oxidation Resistance (15%) |
|
PPS |
190/ (200) |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Poor |
Competitive Advantage:
Quality PPS Ryton Filter Bag
High temperature resistant
High-end production facilities
Good sewing job
PPS Ryton Filter Bag
Anti chemical function well .
Experienced technical & production
1 - Good quality Air filter material made with advanced machinery
2 - Accordingly adjusted technical process
3 - Strict raw material control and products quality control
4. Heat resistance
5. Good acid and alkali resistance
6. Good hydrolysis stability
7. Easy to dedust
Tailor service ,just let us know your request ,we will give exact recommendation .
What kind of product that showed on our website do you need? PTFE fiber, PTFE Sewing thread, PTFE membrane or dust filter cloth and dust filter bag?
If you want buy filter cloth or felt and filter bag, tell me if you need membrane lamination.
The size of dust filter and collect bag.
Is it a revise air or pluse jet?
Flat Dimension.
Specs on Material.
Is it a Top or Bottom Load Collector?
Your working conditions such as temperature resistance, chemical resistance.
