ZHEJIANG GRACE ENVIROTECH CO.,LTD
Always Dedicating In Filtration
| Place of Origin: | China |
|---|---|
| Brand Name: | ECOGRACE |
| Certification: | SGS |
| Model Number: | D 150XL 7000 |
| Minimum Order Quantity: | 100ps |
| Price: | negotiated |
| Packaging Details: | Poly bag or Paper cartons |
| Delivery Time: | 25 days |
| Payment Terms: | T/T ,L/C |
| Supply Ability: | 20000pcs/month |
| Material: | PPS Rtyon Needle Felt | Size: | 130X 8000mm |
|---|---|---|---|
| Operation Temperature: | 170 Degree C | Application: | Coal Boiler Dust Collector |
| Finishing: | PTFE Membrane / Heat Setting / Water And Oil Repellent | Certification: | SGS , ISO 9001 |
| High Light: | Baghouse Filter Sleeves,ECOGRACE Filter Sleeves,8000mm Needle Felt Filter Bag |
||

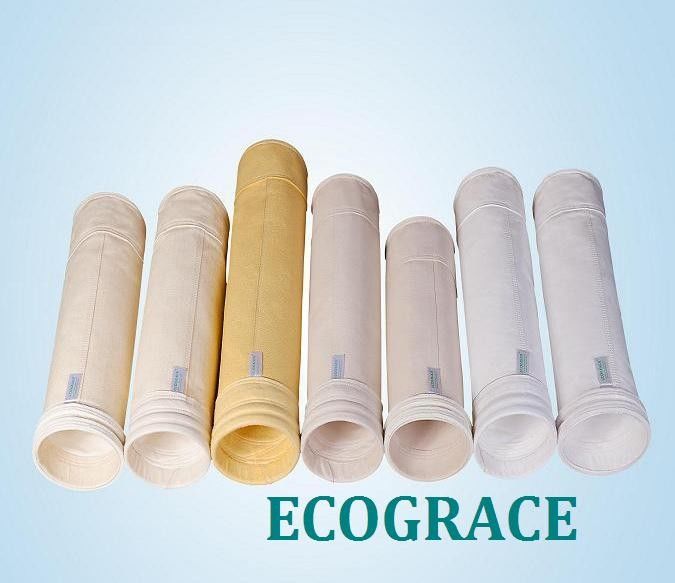

Baghouse PPS Filter Bags , Durable Smoke Power Plant Dust Filtration
Quick details of ECOGRACE PPS filter bags:
1. PPS filter bags is applied for higher temperture gas condistion.
2. High chemical condition applied.
3. Application: Fossil-Fueled Power Plant Dust Collector Filter Bags ,Coal Fired Power Plant Dust Filtration, Metallurgy / Waste incinerator,Biomass furnace filters.
Specifications:
Quality PPS Filter Bag Dust Collector Filter Bag
1 - Good quality Air filter material made with advanced machinery
(new purchased Oerlikon Neumag needle felt line)
2 - Accordingly adjusted technical process
3 - Strict raw material control and products quality control
Technical Specification:
|
Series: |
PPS550gsm |
|
Material: |
PPS (RYTON) 450 - 650g/sq.m needle felt |
|
Fibre: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
|
Scrim: |
100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available) |
|
Weight: |
400 - 650g/m2 (customized) |
|
Finishing: |
Heat setting, single side singeing, calendering (double sides finishing would be available upon request) |
|
Specifications: |
Customized according to drawing / sample |
|
Packaging: |
Polybag in cartons |
|
Applications: |
Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc. |
|
Delivery Time: |
7-45 days |
|
Payment Terms: |
|
Below fiber performance index for your reference.
|
|
Operating Temperature (°C, dry) |
Abrasion Resistance |
Hydrolysis Resistance |
Alkali Resistance |
Organic Acid Resistance |
Mineral Acid Resistance |
Oxidation Resistance (15%) |
|
PPS |
190/ (200) |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Poor |
