Place of Origin: | China |
---|---|
Brand Name: | ECOGRACE |
Certification: | ISO9001,SGS |
Model Number: | D130X4500 |
Minimum Order Quantity: | 100ps |
Price: | negotiated |
Packaging Details: | In woven bags |
Delivery Time: | 1-3 weeks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 pieces per month |
Application: | Carbon Black | Working Temperature: | Up To 260 Degree |
---|---|---|---|
Diameter: | 130mm | Length: | 4500mm |
Certification: | SGS, ISO9001:2008 | Warranty: | 12months |
High Light: | Carbon Black Filter Media Bags,4500mm Filter Media Bags,750G Filter Media Bags |

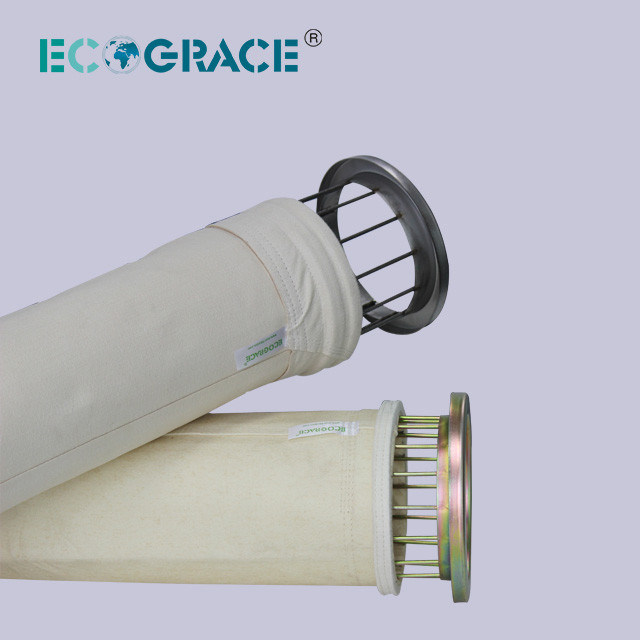

ECOGRACE Fiberglass Filter Bags Carbon Black Plant 150-260 degree temperature works
E-class woven fiberglass filter cloth fabrics are the optimum solution for dust collection systems with working temperatures 150- 260 degree °C. ECOGRACE develop and research the chemical finishing on the fiberglass filter cloth to fully utilize the chemical and physical function . It includes PTFE membrane , PTFE dipping , Graphite treatment , silicon treatment .ECOGRACE Finished woven fiberglass bags are successfully used in Reverse air dust collection system , pulse jet bag filter dust collection system and shaking vibrating dust collecting system .The applied industry including cement plant , carbon black processing .
Detailed Product Description
Fiber: |
Fiberglass |
Weight: |
750g/m2 |
Thickness: |
0.8±0.1mm |
Typical Load@ Peak: |
MD: 220, XD: 130 |
Liner Shrinkage @ 230 Degree: |
MD: 1%, XD: 1% |
Maximum Operation Tempertion: |
260 Degree |
Maximum Surge Temperature: |
280 Degree |
|
|
Introduction of Fiberglass Filter Bags:
Fiberglass filter bag is one of the best filter bags, which has a good performance of abrasion resistance for its strong strength , and good high tempreature resistant function . Fiberglass filter bag has a long service life up to 24 months. What's more, its heat resistance performance is also the best compared to other materials.
Characteristics of Fiberglass Filter Bag:
1, Filter Media : Fiberglass Filter Media
2, Thickness: 0.5mm
3, Max Operation Temperature: 260 degree
4, Max Surge Temperature: 280 degree
5, Heat resistance: Excellent
6, Application: Furnace Flue gas filtration
Performance:
1, Excellent performance of high temperature resistance.
2, Well strong alkalis reistance.
3, Poor hydrolysis resistance.
4, Long serivce life.
Technical Information of Fiberglass filter bag
Article Name |
Fiberglass filter bag |
|
Ingredients |
Fiber |
Fiberglass |
Scrim |
fiberglass |
|
Weight |
g/m2 |
500 |
Thickness |
mm |
0.5±0.1 |
Density |
g/m³ |
0.25 |
Permeability |
L/dm2.min |
200 |
Tensile breaking strength(N/5cm) |
Warp |
≥2200 |
Weft |
≥2600 |
|
Elongation @210N/5cm |
Warp |
<8 |
Weft |
<10 |
|
Maximum shrink of 90 mins |
Temperature(°C) |
280 |
% |
≤2 |
|
Service Temperature(°C) |
Continuous |
260 |
Instant |
280 |
|
Finishing |
Graphite , silicon treatment |
