ZHEJIANG GRACE ENVIROTECH CO.,LTD
Always Dedicating In Filtration
| Place of Origin: | China |
|---|---|
| Brand Name: | ECOGRACE |
| Certification: | SGS, ISO |
| Model Number: | D150XL7000mm |
| Minimum Order Quantity: | 300PCS |
| Price: | 15~50USD/PCS |
| Packaging Details: | Polybag or cartons |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T ,L/C |
| Supply Ability: | 50000pcs/month |
| Product: | PPS Filter Bags Bio Bag Filter | Specification: | 150XL7000mm |
|---|---|---|---|
| Thickness: | 2.3mm | Material: | PPS Filter Farbic |
| Working Temperature: | 190 Degree | Service Life: | 24 Months |
| Warranty Period: | 12 Months | ||
| High Light: | 7000mm PPS Filter Bags,500G High Temperature Filter Bags,500G PPS Filter Bags |
||

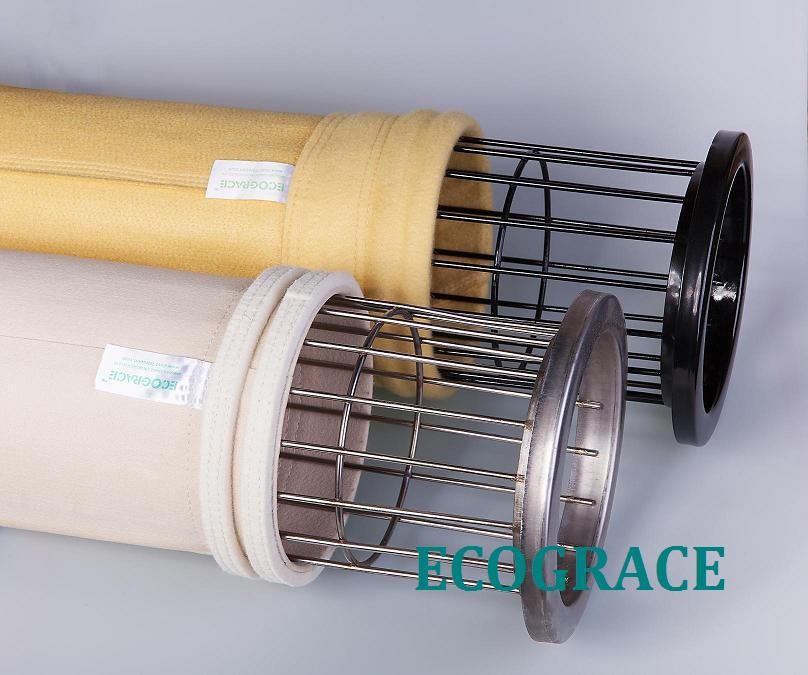

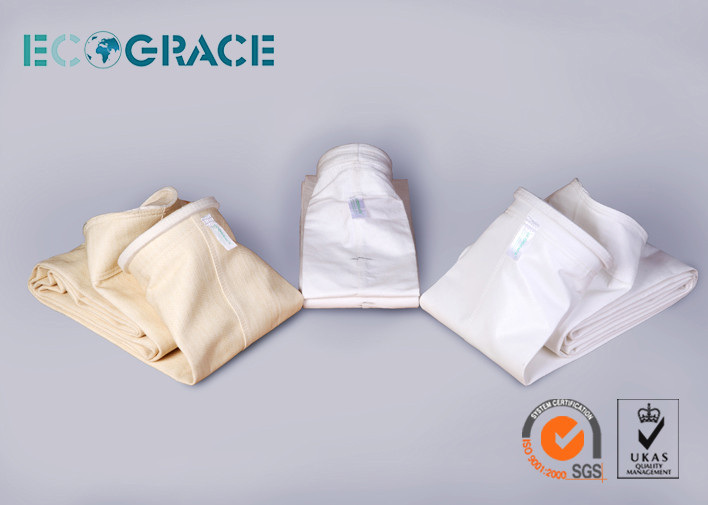

High temperature filter bags PPS filter bags Bio Bag Filter
PPS needle felt / PPS filter bags / Ryton Filter felt
PPS fiber can keep intensity completely and bear chemistry naturing inherently, keep good filtration performance among the abominable environment, reach ideal service life. In coal boiler, rubbish incinerator, power plant of fly ash filtering of pulse clear dust catcher, PPS filter felts are an ideal filtration material. PPS filter felt is one of the main filter material able to bear the high temperature according to processed of production technology and artificial material of other high-temperature filter felt.
PPS (Polyphenylene Sulfide) Fibers Features
• Exceptional Stability for a Wide Range of Temperature and Frequency Variations
• Be suitable for the oxygen content below 15%;
• Chemical Resistance to Acids, Alkalis and Organic Solvents
• Containing moisture in the flue gas; Hydrolysis Resistance
• Very stable in finished felt form with stability standards at 2% shrink or stretch.
• Favorable temperature resistance melting point 285℃, limited oxygen index 34~35;.
Applications :
• Coal - Fired Boilers bag houses
• Municipal Solid Waste Boilers and Waste incinerator baghouse filter
• Calciners / Catalysts
• Thermal power plant
• Waste to energy
• Iron and non ferrous Metal Industry.
Specifications:
|
Compositions
|
PPS stable fiber
|
|
|
Weight (g/ m2)
|
500
|
|
|
Thickness (mm)
|
1.8
|
|
|
Air permeability (L/m2/s)
|
200-300
|
|
|
Tensile strength
(N/5 20cm) |
wrap
|
≥1250
|
|
weft
|
≥1350
|
|
|
Tensile Elongation(％)
|
wrap
|
≤30
|
|
weft
|
≤30
|
|
|
Broken strength
(Mpa/min) |
2.6
|
|
|
Continuous working temperature(℃)
|
≤190
|
|
|
Short time Working temperature(℃)
|
230
|
|
|
Anti-acid
|
Excellent
|
|
|
Anti-alkali
|
Excellent
|
|
|
Anti-abrasion
|
Excellent
|
|
|
The stability of water solution
|
Excellent
|
|
|
Finishing treatment
|
High temperature hot pressing,Singeing
|
|
