ZHEJIANG GRACE ENVIROTECH CO.,LTD
Always Dedicating In Filtration
| Place of Origin: | China |
|---|---|
| Brand Name: | ECOGRACE |
| Certification: | SGS, ISO |
| Model Number: | 160X3100 |
| Minimum Order Quantity: | 300PCS |
| Packaging Details: | By Poly Bags |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T ,L/C |
| Supply Ability: | 20000pcs/month |
| Material: | Nomex Fabrics | Size: | D160x 3100 Mm |
|---|---|---|---|
| Applied Industry: | High Temperature Filter | Temperature: | Up To 210 Degree C |
| Industry: | Dust Collection For Metallurgy And Asphalt Mixing. | ||
| High Light: | Nomex Snap Band Filter Bags,High Temperature Nomex Bags,3100mm Snap Band Filter Bags |
||

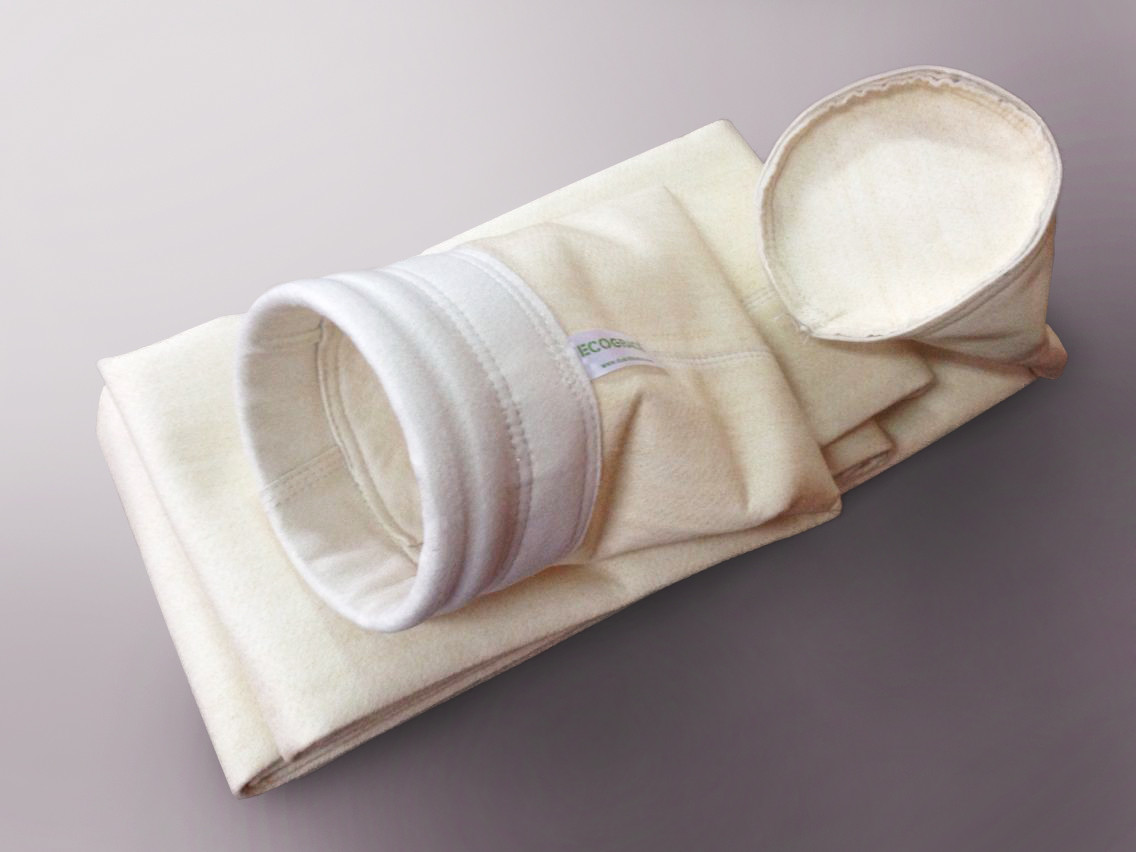

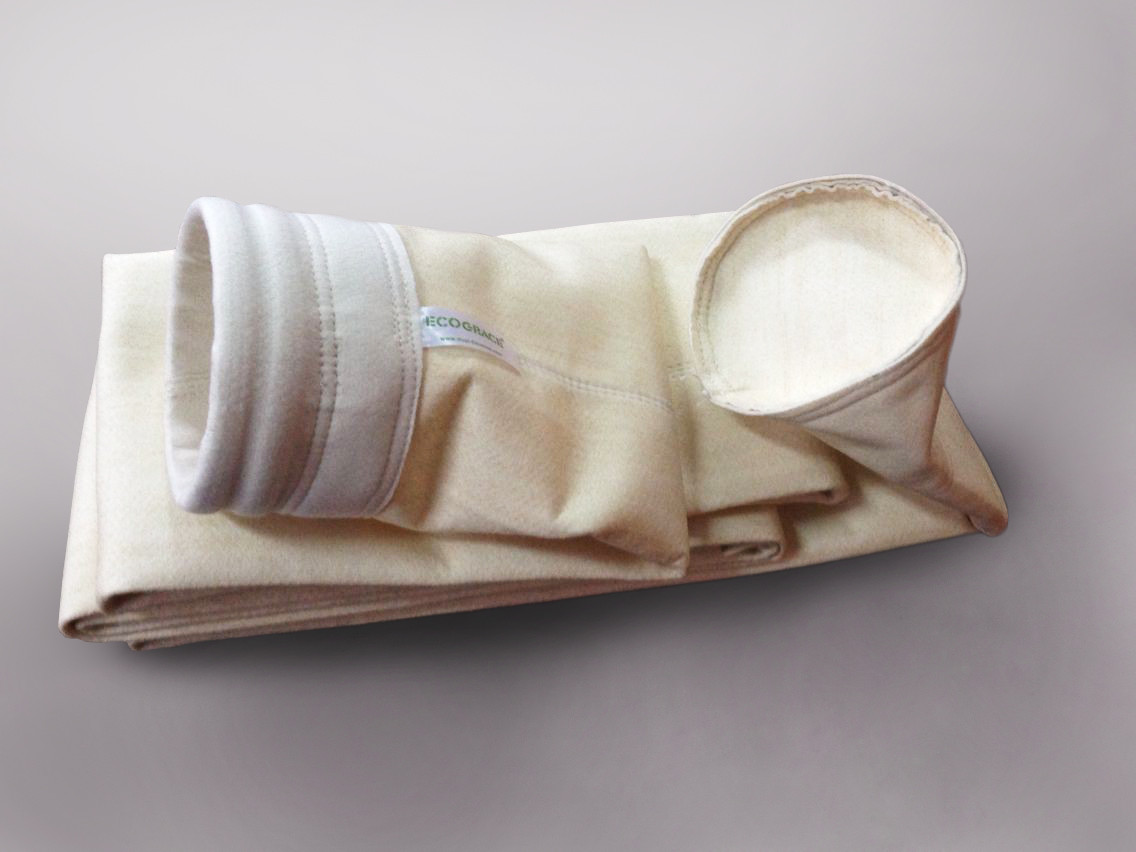

Nomex Bag Filter Bags Meta Aramid filter bag , high temperature applied .
Quick details:
Nomex filter bags usually applied for smoke and fume generated from Asphalt mixing , cement kiln , blast furnace in steel plant . It is high temperature dust filter bags.
Meta Aramid Nomex filter media is a high temperature resistant filter media, the Meta aramid filter media is suitable up to 200 C in dry conditions.
Application:
Asphalt mixing, Quarrying, Lime, Gypsum, Cement, Foundries, smelting, Chemical:
Features :
Nomex filter bags features excellent anti-anrasion, good and good anti-alkali , and anti-high temperature
Advantages :
1. With high tensile strength and low tensile elongation
2. Applied in continuous temperature 204℃ , works well .
3. As nomex filter bags, it is largely used in asphalt plants.
4. With good air permeability and also can be adjusted by customers' specific request
5. Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration .
Specifications :
|
Article Name |
Nomex needled felt |
|
|
Ingredients |
Fiber |
100% Nomex |
|
Scrim |
100% Nomex |
|
|
Weight |
g/m2 |
500 |
|
Thickness |
mm |
2.1 |
|
Density |
g/m³ |
0.24 |
|
Permeability |
L/dm2.min |
150 |
|
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
|
Weft |
≥1000 |
|
|
Elongation @200N/5cm |
Warp |
<5 |
|
Weft |
<5 |
|
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
|
% |
≤1 |
|
|
Service Temperature(°C) |
Continuous |
200 |
|
Instant |
240 |
|
|
Finishing |
Singeing, calendaring |
|
