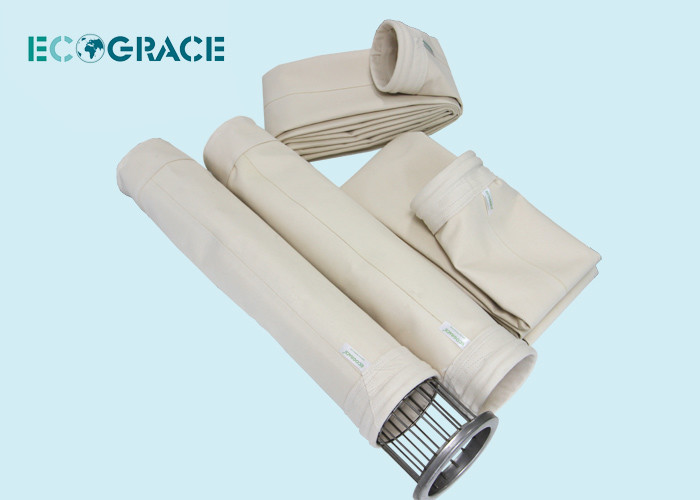

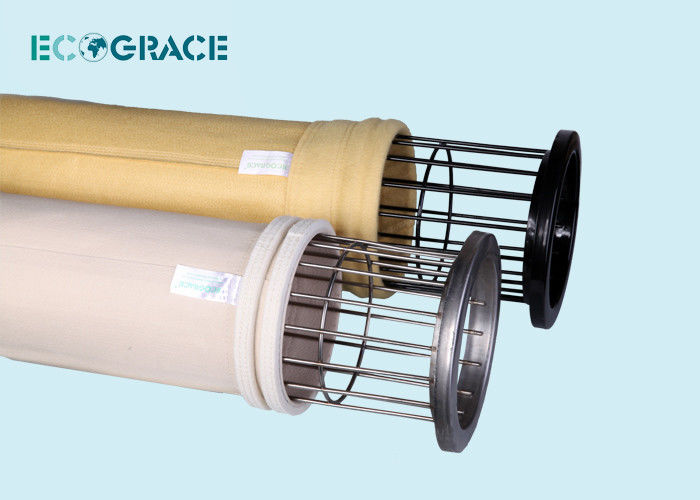

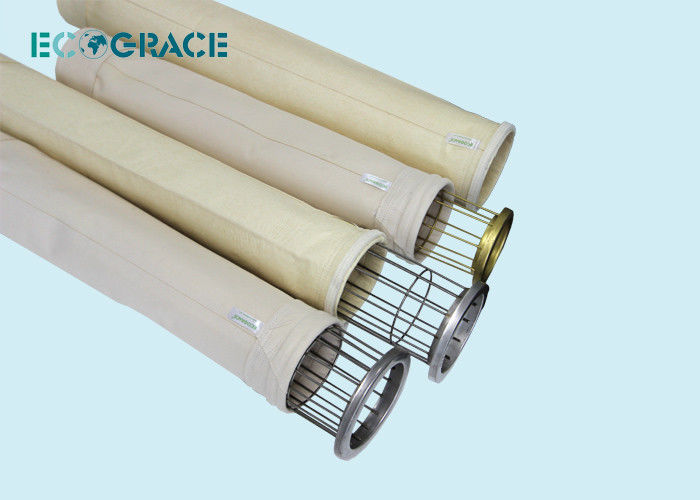

D150 X L3600mm Nomex Filter Bags Water And Oil Repellent Treatment
3 Meter Length High Temperature Nomex Filter Bag , Meta Aramid Bag Filter
1. Material: Nomex filter material
2. Size: 150x 3600 mm
3. Woring temperature: 190 degree C - 204 degree C
4. Finishing: PTFE dipping , water and oil repellent treatment
5. Application: Asphalt mixing , steel mill blast furnace , cement plant
Description of Nomex Filter bags:
Nomex filter bags is the special filter media can be applied in Asphalt mixing plant ,it is the most cost effective filter bags for high temperture smoke. Nomex filter bag offerring one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .
Properties of Nomex Filter bags:
1) Performs at high temperatures
It is used in continuously operating temperatures up to 218°C , and Nomex filter bags can handle higher temperature surges.
2) Resists flexing and abrasion
Flex and abrasion resistance function of Nomex filter bag at ambient temperature is good.
3) Good retardant function of moisture
Nomex filter bag performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20.
4) Dimensional Stability
Nomex filter bag ,Aramid filter bag is one of the most dimensionally stable dust filter bags available. Fibers of Nomex properly manufactured and finished, should neither stretch nor shrink over 2% when operated at temperatures up to 218°C (425°F).
5) High temperatures resistant
The most effective use of Nomex filter bag , aramid filter bag is in high efficiency filtering systems where effluent temperatures are above 250°F or in systems with surges over 250°F. In hot gas filtration systems.
Will work very well in higher air to cloth ratio.
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
It offers one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
Nomex filter felt
of 90 mins
Singeing, calendaring.Water and oil repellent treatment
