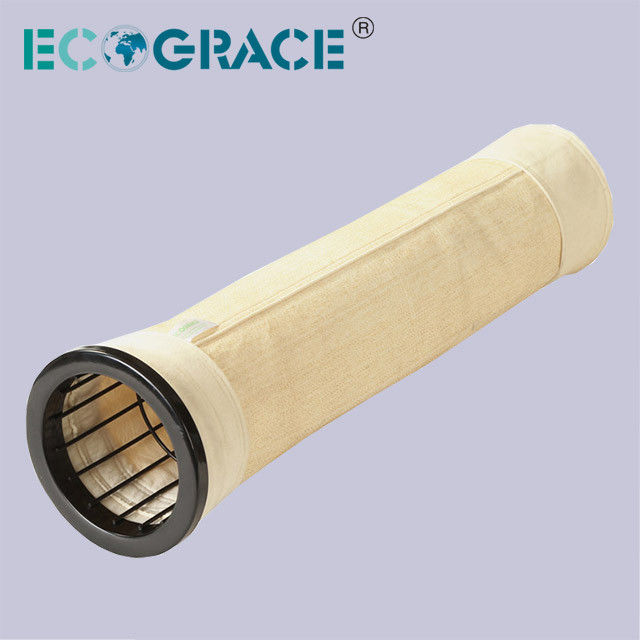

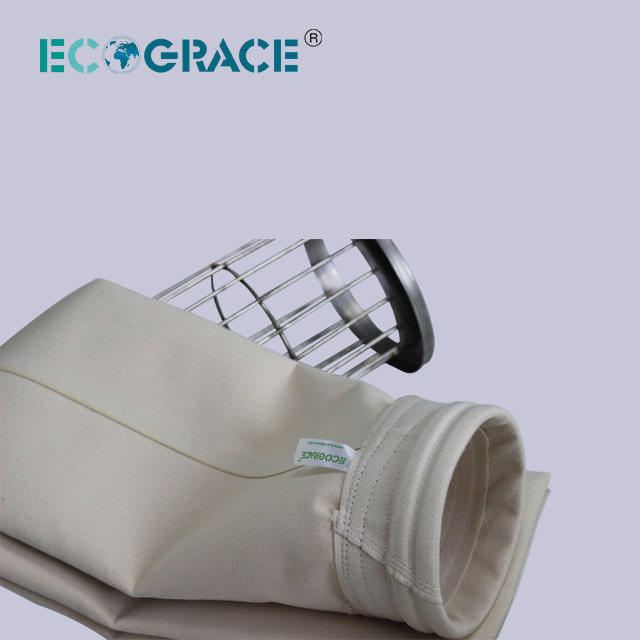

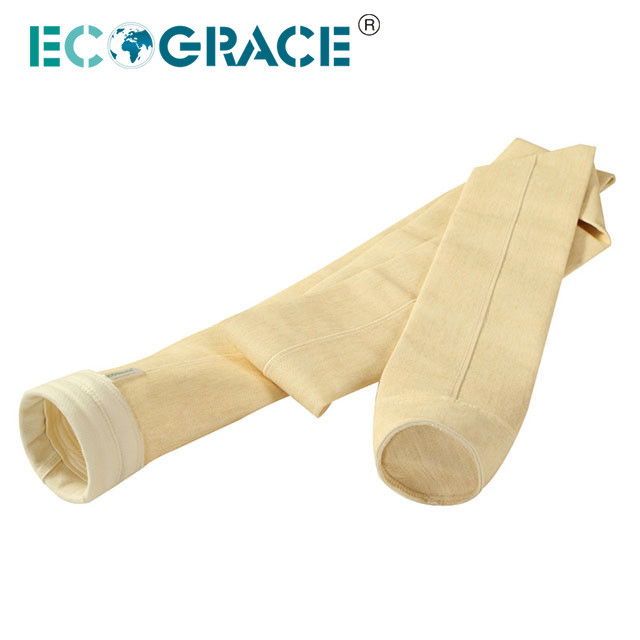

Fabric Dust Collector Nomex Filter Bag Asphalt mixing Site Bag Filter
ECOGRACE Nomex filter bag is widely applied in Asphalt mixing plant for high temperature smoke filtration .Nomex filter bag ,high temperature resistant Nomex filter bag ,water repellent treatment .Nomex filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life .
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,dust filtration in cement plant ,steel melting furnace smoke filtration and so on . NOMEX filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
ECOGRACE Filter bag-----Filter bags for dust collector system
Filter Shaker bags / Shaker Bags
Reverse air filter bags /Filter bags for reverse air blow
Pulse Jet filter bags dust filter bag
Envelope filter bags
Filter bags for special working conditions
Poyester, polypropylene, nylon and PTFE liquid filter bag
Properties of Nomex Filter Bags :
1) Performs at high temperatures
Nomex filter bag can be used continuously at operating temperatures up to 218°C (425°F) , and can handle higher temperature surges. However, to optimize dust filter bag wearing life, continuous temperatures of 204°C (400°F) and lower with minimum temperature surges are recommended.
2) Resists flexing and abrasion
Flex resistance of Nomex filter bag at room temperature is good, about equal to that of polyester fibers; after aging at temperatures of 121°C (250°F) and above its toughness if excellent. Nomex filter bag should give more than three times the wear life of polyester filter bags at 121°C (250°F) and above.
3) Effect of moisture
Nomex filter bag performs well at high operating temperatures with normal amounts of moisture. The wear life projections in the below graphs were developed using 6-10% H20. When operating in high moisture environments it would be worthwhile to investigate reduction of temperature to reduce wear life.
4) Resists Chemicals
Nomex filter bag ,Aramid filter bag fier resists attacks by mild acids, mild alkalis, and most hydrocarbons. In acid environments, evaluation of Nomex filter bags should be made to ensure that the fiber will perform acceptably before insulation. Nomex filter bag ,Aramid filter bag is acid environment, at temperatures above the dew point, will outperform polyester. Temperature above the dew point should be maintained to minimize chemical attack on Nomex filter bag and the dust collector equipment.
5) High temperatures
The most effective use of Nomex filter bag ,aramid filter bag is in high efficiency filtering systems where effluent temperatures are above 250°F or in systems with surges over 250°F. In hot gas filtration systems.
